Descriptions

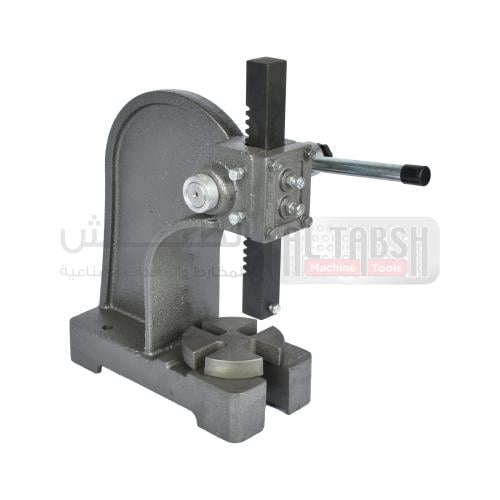

Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.

Description

Model Arbor Press 1TON
Automation Type Manual
Working Height 300 mm
Capacity 1 Ton
Dimensions 24.5 x 11.5 x 30 cm
Model No 1 TON
Weight 13 Kilograms

Quick Comparison

SettingsArbor Press 1TON مكبس ضغط مكانيكي removeLight Lathe Machine SPL320  مخرطة معادن removeAll Geared Drilling Machine SP-D3121S درل عامودي تروس سرعات removeConvectional Lathe Machine TAB-LM660 مخرطة معادن removeLight Lathe Machine TAB L-330 مخرطة معادن removeDrill Press Machine SP5232A  دريل برس remove
NameArbor Press 1TON مكبس ضغط مكانيكي removeLight Lathe Machine SPL320  مخرطة معادن removeAll Geared Drilling Machine SP-D3121S درل عامودي تروس سرعات removeConvectional Lathe Machine TAB-LM660 مخرطة معادن removeLight Lathe Machine TAB L-330 مخرطة معادن removeDrill Press Machine SP5232A  دريل برس remove
SKU
Rating
(No)
(No)
(No)
(No)
(No)
(No)
Price
Stock
Availability
Add to cart

Read more

Read more

Read more

Read more

Read more

Read more

DescriptionDescriptions Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.Description SPL320 Light lathe this manual lathe machine is with a swing of 320mm for light industrial, and the motor power is 1.5kw powerful. Features:
  1. Hardened and ground bed ways engineered from high-grade castings.
  2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
  3. 8 speeds all geared headstock.
  4. Cross and longitudinal interlocking feed, enough safety
  5. All machines have to pass the checklist of the machine precision before shipment
  6. Including switch for test running
  7. There is an extra safety switch that shuts down the machine automatically for changing the belt or gear for threading cutting.
  8. Jog button for easy gear engagement and inching spindle.
Description  SP-D3121S All Geared Drilling Machine New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate. Easy operation with its unique workable, and both motor-drive and manual-operated lifting device. The working table can be rotated 180 and can be tied to +45 and -45 also it is a reliable and easy job that can be done. Equipped with a coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electricity stem with powerful spindle torment is designed according to IEC standards. Characteristic protection device, small batch and mass production for drilling counter boring, reaming, tapping, spot facing, etc.Description The TAB-LM660 Horizontal lathe is with a swing of 660mm for Medium industrial, the motor power is 7.5kw. Features:
  1. Precision ground and hardened bed ways.
  2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
  3. An automatic stopping device is used to realize an automatic stop for the machining of a workpiece of a certain length.
  4. Easy operating speed change levers.
  5. Removable gap is provided for larger diameter work.

Description: The TAB L-330 light lathe gets the job done efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies. With a 330mm swing, a 1000mm distance between centers, a wide range of speed feeds, and screw-cutting options, this lathe machine has an advantage over its competitors.  Features:
  1. Hardened and ground bed ways engineered from high-grade castings.
  2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
  3. 8 speeds all geared headstock.
  4. Cross and longitudinal interlocking feed, enough safety
  5.  All machines must pass the checklist of machine precision before shipment
  6. Including switch for test running
  7. There is an extra safety switch that automatically shuts down the machine for changing the belt or gear for threading cutting.
  8. Jog button for easy gear engagement and inching spindle.
Description SP5232A  drill press belongs to one of our most economical manual metal drill presses it is small in size and delicate in design. Features:
  1. Electrical bench drill press
  2. Competitive price & good service
  3. OEM service
  4. Belt driving, low noise,
  5. Spindle feeding can be done not only automatically but also manually, changing and operating easily
Content
Model Arbor Press 1TON
Automation Type Manual
Working Height 300 mm
Capacity 1 Ton
Dimensions 24.5 x 11.5 x 30 cm
Model No 1 TON
Weight 13 Kilograms
model SPL320
Max. Swing over bed: 320mm
Max. Swing over cross slide 198mm
Max. Swing over gap 476mm
Distance between centers 1000mm
Spindle bore diameter 38mm
Taper of spindle bore MT.5
Range of spindle Speed 65~1400 (65-1810) rpm
Range of Longitudinal feeds 0.079~1.291mm/rev
Range of cross feeds 0.017~0.276 mm/rev
Range of Metric threads 0.4~7 mm
Range of inch threads 4-60TPI
Max. Travel of tailstock quill 100mm
Taper of tailstock quill bore MT.3
Power of main drive motor 1.5kW
Packing size 1940×750×1400mm
Net weight 620 kg
Gross weight 670 kg
model SP-D3121S
Max.Drilling capacity (mm) 40
Diameter of column (mm) 160
Spindle travel (mm) 180
Distance spindle axis to column generating line (mm) 360
Max.Distance spindle nose to table (mm) 600
Max.Distance spindle nose to table (mm) 1215
Spindle taper MT4
Spindle speeds range (r/min) 42-2050
Spindle speeds series 12
Spindle feeds 4 (r/min) 0.07,0.15,0.25,0.40
Dimension of worktable surface (mm) 460×450
Table travel (mm) 560
Dimension of base table (mm) 510×380
Overall height (mm) 2310
Main motor (KW) 2.2/2.8
Coolant motor (KW) 0.024
G.W/N. W (kg) 800/730

Model TAB-LM660
Max. swing over bed 660mm
Max. swing over carriage 420mm
Max. swing over gap 870mm
Bed width 405mm
Effective length of gap 230mm
Distance between centers 1000/1500/2000/3000mm
Max turning length 830/1330/1830/2830mm
SPINDLE
Spindle nose D8
Spindle bore 105mm
Taper bore of spindle 113mm 1:20
Steps of spindle speed 12
Range of spindle speed 36~1600rpm
FEED
Range of longitudinal feeds 0.063~2.52 (0.023"~0.937")mm
Range of cross feeds 0.027~1.07(0.010"~0.404")mm
RAPID TRAVEL
Longitudinal 4500mm/min
Cross 1900mm/min
THREAD RANGE/ NUMBER
Metric pitch threads 1~14mm/ 22
Whit-worth threads 28~2TPI/ 26
Module threads 0.5~7MP/ 18
D.P. Threads 56~4DP/ 24
TAILSTOCK SLEEVE
Taper bore M.T.NO.5
Max.travel 150(5~29/32")mm
External diameter 75(2~61/64")mm
OTHERS
Size of tool shank 25×25mm
Max travel of cross slide 360mm
Max.travel of top slide 145mm
Main motor power 7.5kw
Overall dimension (LxWxH) 2500/3000/3500/4500×1100×1450mm
Net weight 3000/3200/3400/3900kg
model TAB L-330
Swing over bed 330mm
Swing over cross slide 198mm
Swing in gap diameter 476mm
Swing in length of gap 210mm
Center height 166mm
Distance between Center 1000mm
Bed width 187mm
Spindle bore 38mm
Spindle nose D1-4" or A2-4"
Taper in sleeve NO.3 Morse
Speeds number 8
Speeds range 70-2000r.p.m.or 35-2000r.p.m.(2 speed motor)
Cross slide travel 118mm
Compound rest travel 68mm
Lead screw thread 8T.P.I. or 3mm pitch
Feed rod diameter 19mm
Cutting tool max section 16mm×16mm
Threads imperial pitches 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I)
Threads metric pitches 28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch)
Longitudinal feeds imperial 36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev)
Longitudinal feeds metric 36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev)
Cross feeds imperial 36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev)
Cross feeds metric 36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev)
Quill diameter 32mm(1-1/4")
Quill travel 100mm(3-15/16")
Quill taper NO.3 morse
main motor 1.5KW
Packing size 1950×750×1510mm
Net weight 640kgs
Gross weight 690kgs
Model SP5232A
Drilling capacity Ø32mm(1—1/4")
Motor power 1100/1500W
Chuck Capacity 5-20mm
Spindle stroke 120mm
Class Of Speed 12
Speed 60Hz 150~2450/180~2940 R.P.M
Spindle taper MT4
Auto-feeding step of worktable 225mm
Max.distance from spindle end to surface of table 700mm
Max.distance from spindle end to surface of base 1225mm
Swing 450mm
Table size 360×360mm
Base Size 470×360mm
Column Diameter Ø92mm
Height 1710mm
N.W./G.W. 115/120kg
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
