Descriptions:

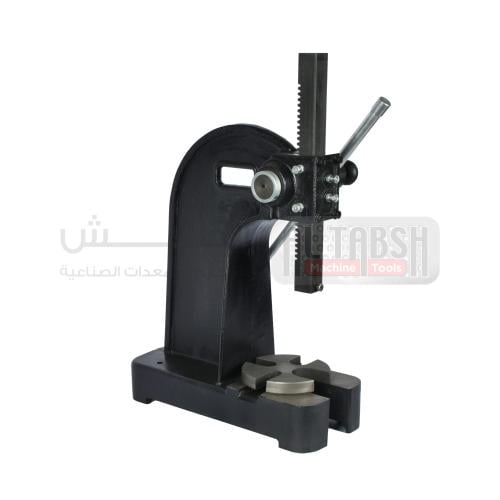

Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.

Description

Model Arbor Press 3TON
Automation Type Manual
Working Height 570 mm
Capacity 3 Ton
Dimensions 46 x 19.7 x 57 cm
Model No 3 TON
Weight 42 Kilograms

Quick Comparison

SettingsArbor Press 3TON مكبس ضغط مكانيكي removeDividing Head Sets جهاز تقسيم removeVaccum Tester removeArbor Press 0.5TON مكبس ضغط مكانيكي removeRotary Tables removeHalf Cap End Grinder Machine remove
NameArbor Press 3TON مكبس ضغط مكانيكي removeDividing Head Sets جهاز تقسيم removeVaccum Tester removeArbor Press 0.5TON مكبس ضغط مكانيكي removeRotary Tables removeHalf Cap End Grinder Machine remove
SKU
Rating
(No)
(No)
(No)
(No)
(No)
(No)
Price
Stock
Availability
Add to cart

Read more

Read more

Read more

Read more

Read more

Read more

DescriptionDescriptions: Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.Descriptions
  • The universal dividing heads models UDH80, UDH100, UDH125, and UDH160 respectively have the center height of 80mm, 100mm, 125mm, and 160mm and are the most important attachment for milling machines. With the help of the dividing head, the workpiece held between centers, or on a chuck can be rotated to any angle as desired and the periphery of a workpiece can be divided into any number of divisions equally. By means of all kinds of cutters, the dividing head can also help the milling machine to perform the milling operation for flute, spur gear, spiral gear, spiral flute, Archimedean cam, helical flute, etc.
  • The dividing head is equipped with a face plate and then can be mounted onto the spindle nose. The workpiece can be mounted on the face plate; thus the cutting can be carried out from all sides of the workpiece. UDH125 and UDH160 models dividing heads are designed with improved shafts for supporting heavy loads.
  • The universal dividing heads of models UDH100, UDH125, and UDH160 are in the same structures as the UDH80 model dividing heads, and the operation handle is located on the left.
Descriptions:
Vacuum tester is a portable device for measuring the vacuum which is mainly used to test the seal level of the engine valve and valve seat before or after rebuilding the cylinder head. It can be also applied to test other vacuum purposes.
Descriptions Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.Descriptions Made from premium nodular cast iron, which ensures durability The vertical and horizontal table is one of the main accessories of milling machine. It can be used for indexing drilling or milling, circumferential cutting, boring a hole, and spot facing on milling machine. When the table in vertical with tailstock working together, it can be used on complex work for circular indexing drilling and milling. Enjoys strong stability and wonderful performance.Descriptions This grinder has special equipment for regrinding rod big end composition surface. Features:
  1. Diameter of the grinding wheel: 150mm
  2. Dimension of revolution worktable: 120mm× 180mm (long× Wide)
  3. Max moving of revolution worktable: 22mm
Content
Model Arbor Press 3TON
Automation Type Manual
Working Height 570 mm
Capacity 3 Ton
Dimensions 46 x 19.7 x 57 cm
Model No 3 TON
Weight 42 Kilograms
Model UDH80 UDH100 UDH125 UDH160
Center height (Millimeter) 80 100 125 160
Morse taper of spindle (Morse) 3 3 4 4
Diameter of spindle (Millimeter) 36.541 41.275 53.975 53.975
Worm wheel transmit proportion 01:40 01:40 01:40 01:40
The angular of spindle rises and falls relative to horizontal >95:5 >95:5 >95:5 >95:5
Position width (Millimeter) 14 14 18 18
Dividing accuration (Minute) 60 45 45 45
Gross weight (Kg) 40 80 132 140
Model Vaccum Tester
Power supply 220V/1PH
Power 100W
Output 60HZ-45L/Min
Vacuum Level 900mbar
Model Arbor Press 0.5TON
Automation Type Manual
Working Height 270 mm
Capacity 0.5 Ton
Dimensions 24.5 x 11 x 27 cm
Model No 0.5 TON
Weight 10 Kilograms
Model HRW160 HRW200 HRW250 HRW320 HRW400 HRW500
Rotary table diameter (mm) 160 200 250 320 400 500
Numbers of holes of Rotary table (Worm gear reduction radio) 2 3 3 4 4 5
Position width (mm) 12 14 14 18 18 14
T-slot width (mm) 10 12 12 14 14 18
Worm wheel Transmission Proportion 1;90 1:90 1:90 1:90 1:90 1:120
Dividing accuracy 10'' 10'' 10" 10" 10" 10"
Net weight (Kg) 16.5 22.5 33.5 65 125 215
Goss weight (Kg) 21.5 31 44.5 76 150 238
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
