Description | Descriptions

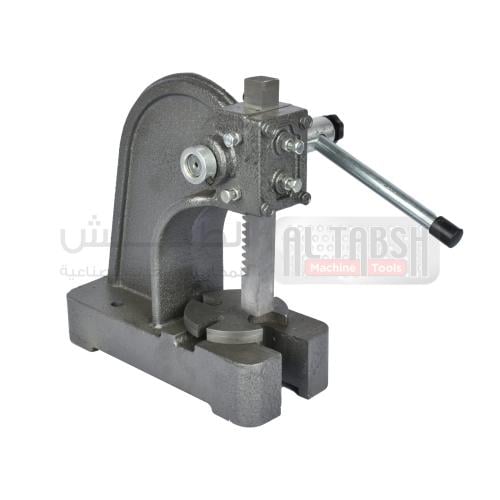

<br\>Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work. | Description
The TAB LM500 Conventional lathe gets the job done efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. for usage mechanics workshops, lathes workshops, and central maintenance workshops for companies, factories, and supply companies. With a 500mm swing, 1000/1500/2000/3000mm distance between centers, a wide range of speed feeds, and screw-cutting options, this lathe machine has an advantage over its competitors.
Features:
- Precision ground and hardened bed ways.
- The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
- There is no need to change gears. The machine can turn about 90 kinds of metric, inch, module, and D.P. threads.
- An automatic stopping device is used to realize an automatic stop for the machining of a workpiece of a certain length.
- Easy operating speed change levers.
- Removable gap is provided for larger diameter work.
| Description
The BL250 bench lathe gets the job done efficiently, and affordably.
This customized lathe machine from Altabsh has a modern, tested design top installations, and safety regulations. Which can do most small works easily and fast. For usage in the light industry small workshops and central maintenance workshops for companies. With a 280mm swing, 700mm distance between centers, a wide range of speed feeds, and screw-cutting options.
Features
- Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
- Complex processes can be done at one time
- Function: cutting, drilling, Milling, etc.
- Small in size and delicate in design
- High Precision for Model Engineering
- Easy Operation & Convenient Reparations
| Description
SP5232B drill press belongs to one of our most economical manual drill press machines it is medium-sized and delicate in design
Features:
- Keyed safety switch prevents accidental starting
- 2-speed settings to accommodate various materials and thicknesses
- height adjustable
- Pinion table elevation makes adjusting the table height easy and accurate
| Description
Multi-purpose Combination Mini Lathe Mill Machine 3 In 1 Lathe Drill And Mill Combo is the trend of present world machine tool technology, complex processes on a single machine to reduce machine tool and fixture, eliminating inter-process handling and storage, improve workpiece machine accuracy and shorten the processing cycle and the purpose of saving working area. cutting drilling and milling compounded mini multi-purpose machine BL125 will not only meet the needs of users to reduce floor area, parts delivery and reduce inventory, ensure the machining accuracy, and so on, but also adapt to energy saving requirements of modern society. More and more complex parts using composite machine tools for integrated processing.
Features:
- Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
- Complex processes can be done at one time
- Function: cutting, drilling, Milling, etc.
- Small in size and delicate in design
- High Precision for Model Engineering
- Easy Operation & Convenient Reparations
| Description
Multi-purpose Combination Mini Lathe Mill Machine 3 In 1 Lathe Drill And Mill Combo is the trend of present world machine tool technology, complex processes on a single machine to reduce machine tool and fixture, eliminating inter-process handing and storage, improve workpiece machine accuracy and shorten the processing cycle and the purpose of saving working area. cutting drilling and milling compounded mini multi-purpose machine BL270 will not only meet the needs of users to reduce floor area, parts delivery and reduce inventory, ensure the machining accuracy, and so on, but also adapt to energy saving requirements of modern society. More and more complex parts using composite machine tools for integrated processing.
Features:
- Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
- Complex processes can be done at one time
- Function: cutting, drilling, Milling, etc.
- Small in size and delicate in design
- High Precision for Model Engineering
- Easy Operation & Convenient Reparations
|
Content |
Model |
Arbor Press 0.5TON |
Automation Type |
Manual |
Working Height |
270 mm |
Capacity |
0.5 Ton |
Dimensions |
24.5 x 11 x 27 cm |
Model No |
0.5 TON |
Weight |
10 Kilograms |
|
Model |
TAB-LM500 |
CAPACITY |
Max.swing over bed |
Ф500mm |
Max.swing over carriage |
Ф260mm |
Max. swing over gap |
Ф710mm |
Distance between centers |
1000/1500/2000/3000mm |
Bed width |
405mm |
SPINDLE |
Spindle nose |
D8 |
Spindle bore |
Ф80mm |
Taper bore of spindle |
M.T.NO.7 |
Steps of spindle speed |
24 |
Range of spindle speed |
9~1600rpm |
FEED |
Range of longitudinal feeds |
0.063~6.43 (0.0023″~0.2392″) mm |
Range of cross feeds |
0.027~2.73(0.0010″~0.1016″) mm |
RAPID TRAVEL |
Longitudinal |
4500mm/min |
Cross |
1900mm/min |
THREAD RANGE/ NUMBER |
Metric pitch threads |
1~224mm/ 46 |
Whit-worth threads |
28~1/8 TPI/ 26 |
Module threads |
0.5~112mm/ 42 |
D.P. Threads |
56~1/4 DP/ 45 |
TAILSTOCK SLEEVE |
Taper bore |
M.T.NO.5 |
Max. travel |
150(5~29/32″) mm |
External diameter |
Ф75(2~61/64″) mm |
OTHERS |
Size of tool shank |
25×25mm |
Max travel of cross slide |
360mm |
Max. travel of top slide |
145mm |
Main motor power |
7.5kw (10HP) |
Overall dimensions(L×W×H) |
(2500/3000/3500/4500) ×900×1259mm |
Net weight |
2750/3000/3250/3600kg |
|
Model |
BL250G |
Swing over bed |
250mm |
Distance between Centers |
700mm |
MAX swing diameter over middle carriage |
150mm |
Spindle bore |
26mm |
Headstock taper |
MT4 |
Y-Axis Working Travel |
130 mm |
X-Axis Working Travel of toolpost slide |
75mm |
Modulus thread kinds on processing |
15mm |
Modulus thread pitch on processing |
0.25-2.5mm |
Longitudinal feed on spindle toolcarrier |
0.03-0.275mm/r |
Cross feed on spindle toolcarrier |
0.015-0.137mm/r |
Tailstock Taper |
MT3# |
Tailstock quill travel |
60 mm |
Spindle speed step/range |
12/80-1600rpm |
Electric motor |
750W |
Net/Gross weight |
215/245KG |
Overall dimension |
1400×650×1200mm |
|
Model |
SP5232B |
Drilling capacity |
Ø32mm (1-1/4") |
Motor power |
1500W |
Chuck Capacity |
5-20mm |
Spindle stroke |
120mm |
Class Of Speed |
12 |
Speed 60Hz |
150~2450/180~2940 R.P.M |
Spindle taper |
MT4 |
Auto-feeding step of worktable |
255mm |
Max. distance from spindle end to surface of table |
745mm |
Max. distance from spindle end to surface of base |
1205mm |
Swing |
510mm |
Table size |
420×480mm |
Base Size |
560×450mm |
Column Diameter |
Ø92mm |
Height |
1710mm |
N.W./G.W. |
125/130kg |
|
model |
BL125 |
Distance between centers |
180 mm |
Swing over bed |
125 mm |
Swing over cross slide |
60 mm |
Taper of spindle bore |
MT1 |
Spindle bore |
8 mm |
Number of spindle speeds |
Variable |
Range of spindle speeds |
560-2500 rpm |
Range of metric threads |
0.4-1.5 mm, |
Range of inch threads |
16-48 T.P.I |
Work Table size |
85×60mm |
Top slide travel |
35 mm |
Cross slide travel |
80 mm |
Tailstock quill travel |
20 mm |
Tailstock quill Taper |
MT1 |
Motor |
250 w |
Packing size |
520×300×410 mm |
Net weight |
16 kg |
Mill & drill |
|
Max.drilling dia |
6mm |
Max.end milling capacity |
10mm |
Max.face milling capacity |
25mm |
Vertical travel |
125mm |
Taper of spindle bore |
MT1 |
Spindle travel |
40mm |
Spindle speed |
500-2500 rpm |
|
model |
BL270 |
Distance between centers |
700 mm |
Swing over bed |
250 mm |
Swing over cross slide |
130 mm |
Taper of spindle bore |
MT4 |
Spindle bore |
27 mm |
Number of spindle speeds |
Variable |
Range of spindle speeds |
115-1620 rpm |
Range of metric threads |
20/0.2-3.5 mm, |
Range of inch threads |
20/8-56 T.P.I |
Motor |
550 w |
Top slide travel |
50 mm |
Cross slide travel |
120 mm |
Tailstock quill travel |
50 mm |
Tailstock quill Taper |
MT2 |
Packing size |
1580×680×880 mm |
Net weight |
225 kg |
Mill & drill |
|
Max.drilling dia |
16mm |
Max.end milling capacity |
20mm |
Max.face milling capacity |
50mm |
Vertical travel |
220mm |
Taper of spindle bore |
MT2 |
Spindle travel |
50mm |
Spindle speed |
50-2250 rpm |
Motor for (drill/mill) |
600 w |
|
