| Description | Descriptions:

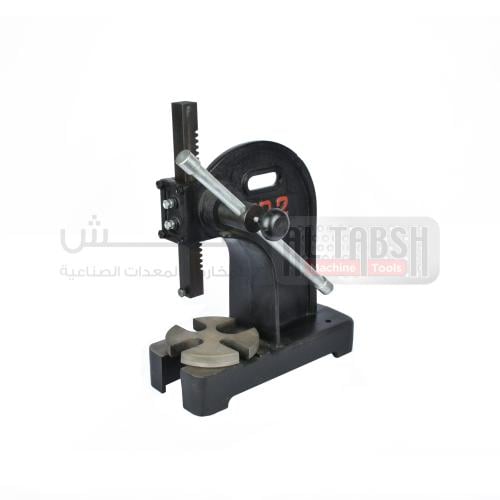

Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work. | Description
SPL360 Light lathe this manual lathe machine is with swings 360mm for light industrial, and the motor power is 1.5kw powerful. The foot brake is a rapid braking type.
Features:
- Hardened and ground bed ways engineered from high-grade castings.
- Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
- 8 speeds all geared headstock.
- Cross and longitudinal interlocking feed, enough safety
- All machines have to pass the checklist of the machine precision before shipment
- Including switch for test running
- There is an extra safety switch that shuts down the machine automatically for changing the belt or gear for threading cutting.
- Jog button for easy gear engagement and inching spindle.
| Description
Multi-purpose Combination Mini Lathe Mill Machine 3 In 1 Lathe Drill And Mill Combo is the trend of present world machine tool technology, complex processes on a single machine to reduce machine tool and fixture, eliminating inter-process handing and storage, improve workpiece machine accuracy and shorten the processing cycle and the purpose of saving working area. cutting drilling and milling compounded mini multi-purpose machine BL270 will not only meet the needs of users to reduce floor area, parts delivery and reduce inventory, ensure the machining accuracy, and so on, but also adapt to energy saving requirements of modern society. More and more complex parts using composite machine tools for integrated processing.
Features:
- Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
- Complex processes can be done at one time
- Function: cutting, drilling, Milling, etc.
- Small in size and delicate in design
- High Precision for Model Engineering
- Easy Operation & Convenient Reparations
| Description
SP-D3121S All Geared Drilling Machine
New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate.
Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
The working table can be rotated 180 and can be tied to +45 and -45 also it is a reliable and easy job that can be done.
Equipped with a coolant system and tapping mechanism.
Equipped with shortcut and overload protection, its electricity stem with powerful spindle torment is designed according to IEC standards.
Characteristic protection device, small batch and mass production for drilling counter boring, reaming, tapping, spot facing, etc. | Description:
The TAB L-330 light lathe gets the job done efficiently, and affordably.
This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies.
With a 330mm swing, a 1000mm distance between centers, a wide range of speed feeds, and screw-cutting options, this lathe machine has an advantage over its competitors.
Features:
- Hardened and ground bed ways engineered from high-grade castings.
- Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
- 8 speeds all geared headstock.
- Cross and longitudinal interlocking feed, enough safety
- All machines must pass the checklist of machine precision before shipment
- Including switch for test running
- There is an extra safety switch that automatically shuts down the machine for changing the belt or gear for threading cutting.
- Jog button for easy gear engagement and inching spindle.
| Descriptions
SP-D3112S All geared Drilling Machine
New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate.
Easy operation with its unique workable.
The working table can be rotated 180 and can be tied to +45 and -45 also it is a reliable and easy job that can be done.
Equipped with a coolant system and tapping mechanism.
Equipped with shortcut and overload protection, its electricity stem with powerful spindle torment is designed according to IEC standards.
Characteristic protection device, small batch and mass production for drilling counter boring, reaming, tapping, spot facing, etc.
|
| Content |
| Model |
Arbor Press 2TON |
| Automation Type |
Manual |
| Working Height |
440 mm |
| Capacity |
2 Ton |
| Dimensions |
44 x 16.4 x 39.2 cm; |
| Model No |
2 TON |
| Weight |
28 Kilograms |
|
| Model |
SPL360 |
| Swing over bed |
360mm |
| Swing over cross slide |
212mm |
| Swing in gap diameter |
491mm |
| Swing in length of gap |
210mm |
| Center height |
179mm |
| Distance between Center |
1000mm |
| Bed width |
187mm |
| Spindle bore |
38mm |
| Spindle nose |
D1-4" or A2-4" |
| Taper in sleeve |
NO.3 Morse |
| Speeds number |
8 |
| Speeds range |
70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
| Cross slide travel |
160mm |
| Compound rest travel |
68mm(2-11/16") |
| Lead screw thread |
8T.P.I. or 3mm pitch |
| Feed rod diameter |
19mm(3/4") |
| Cutting tool max section |
16mm×16mm(5/8"×5/8") |
| Threads imperial pitches |
36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
| Threads metric pitches |
28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) |
| Longitudinal feeds imperial |
36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) |
| Longitudinal feeds metric |
36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev) |
| Cross feeds imperial |
36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev) |
| Cross feeds metric |
36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev) |
| Quill diameter |
32mm(1-1/4") |
| Quill travel |
100mm(3-15/16") |
| Quill taper |
NO.3 morse |
| main motor |
1.5KW |
| Packing size |
1950×750×1510mm |
| Net weight |
690kgs |
| Gross weight |
740kgs |
|
| model |
BL270 |
| Distance between centers |
700 mm |
| Swing over bed |
250 mm |
| Swing over cross slide |
130 mm |
| Taper of spindle bore |
MT4 |
| Spindle bore |
27 mm |
| Number of spindle speeds |
Variable |
| Range of spindle speeds |
115-1620 rpm |
| Range of metric threads |
20/0.2-3.5 mm, |
| Range of inch threads |
20/8-56 T.P.I |
| Motor |
550 w |
| Top slide travel |
50 mm |
| Cross slide travel |
120 mm |
| Tailstock quill travel |
50 mm |
| Tailstock quill Taper |
MT2 |
| Packing size |
1580×680×880 mm |
| Net weight |
225 kg |
| Mill & drill |
|
| Max.drilling dia |
16mm |
| Max.end milling capacity |
20mm |
| Max.face milling capacity |
50mm |
| Vertical travel |
220mm |
| Taper of spindle bore |
MT2 |
| Spindle travel |
50mm |
| Spindle speed |
50-2250 rpm |
| Motor for (drill/mill) |
600 w |
|
| model |
SP-D3121S |
| Max.Drilling capacity (mm) |
40 |
| Diameter of column (mm) |
160 |
| Spindle travel (mm) |
180 |
| Distance spindle axis to column generating line (mm) |
360 |
| Max.Distance spindle nose to table (mm) |
600 |
| Max.Distance spindle nose to table (mm) |
1215 |
| Spindle taper |
MT4 |
| Spindle speeds range (r/min) |
42-2050 |
| Spindle speeds series |
12 |
| Spindle feeds 4 (r/min) |
0.07,0.15,0.25,0.40 |
| Dimension of worktable surface (mm) |
460×450 |
| Table travel (mm) |
560 |
| Dimension of base table (mm) |
510×380 |
| Overall height (mm) |
2310 |
| Main motor (KW) |
2.2/2.8 |
| Coolant motor (KW) |
0.024 |
| G.W/N. W (kg) |
800/730 |
|
| model |
TAB L-330 |
| Swing over bed |
330mm |
| Swing over cross slide |
198mm |
| Swing in gap diameter |
476mm |
| Swing in length of gap |
210mm |
| Center height |
166mm |
| Distance between Center |
1000mm |
| Bed width |
187mm |
| Spindle bore |
38mm |
| Spindle nose |
D1-4" or A2-4" |
| Taper in sleeve |
NO.3 Morse |
| Speeds number |
8 |
| Speeds range |
70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
| Cross slide travel |
118mm |
| Compound rest travel |
68mm |
| Lead screw thread |
8T.P.I. or 3mm pitch |
| Feed rod diameter |
19mm |
| Cutting tool max section |
16mm×16mm |
| Threads imperial pitches |
36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
| Threads metric pitches |
28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) |
| Longitudinal feeds imperial |
36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) |
| Longitudinal feeds metric |
36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev) |
| Cross feeds imperial |
36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev) |
| Cross feeds metric |
36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev) |
| Quill diameter |
32mm(1-1/4") |
| Quill travel |
100mm(3-15/16") |
| Quill taper |
NO.3 morse |
| main motor |
1.5KW |
| Packing size |
1950×750×1510mm |
| Net weight |
640kgs |
| Gross weight |
690kgs |
|
| model |
SP-D3112S |
| Max.Drilling capacity (mm) |
35 |
| Diameter of column (mm) |
140 |
| Spindle travel (mm) |
150 |
| Distance spindle axis to column generating line (mm) |
330 |
| Max.Distance spindle nose to table (mm) |
610 |
| Max.Distance spindle nose to table (mm) |
1150 |
| Spindle taper |
MT4 |
| Spindle speeds range (r/min) |
70-2600 |
| Spindle speeds series |
12 |
| Spindle feeds 3 (r/min) |
0.1 0.2 0.3 |
| Dimension of worktable surface (mm) |
420×420 |
| Table travel (mm) |
540 |
| Dimension of base table (mm) |
420×380 |
| Overall height (mm) |
2150 |
| Main motor (KW) |
1.5/2.2 |
| Coolant motor (KW) |
0.085 |
| G.W/N. W (kg) |
730/670 |
|
