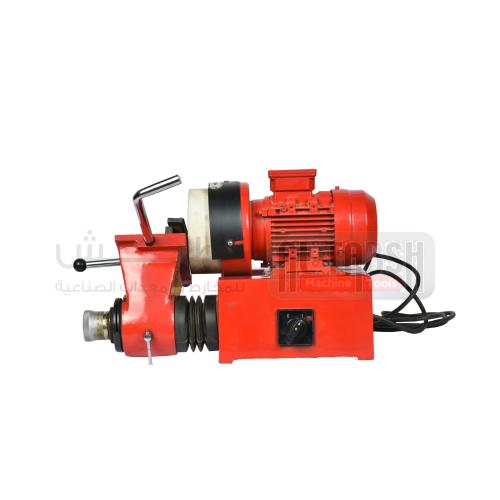

Half Cap End Grinder Machine

Descriptions

This grinder has special equipment for regrinding rod big end composition surface.

Features:

Diameter of the grinding wheel: 150mm
Dimension of revolution worktable: 120mm× 180mm (long× Wide)
Max moving of revolution worktable: 22mm

Export Catalog

Get a Price

Categories: Half Cap End Grinders, Merchandises

Quick Comparison

Settings Half Cap End Grinder Machine remove Arbor Press 1TON مكبس ضغط مكانيكي remove Belt Sander Machine Combo 3IN1 2"×82"Belt بيلت ساندر remove Dividing Head Sets جهاز تقسيم remove Arbor Press 0.5TON مكبس ضغط مكانيكي remove Rotary Tables remove

Name Half Cap End Grinder Machine remove Arbor Press 1TON مكبس ضغط مكانيكي remove Belt Sander Machine Combo 3IN1 2"×82"Belt بيلت ساندر remove Dividing Head Sets جهاز تقسيم remove Arbor Press 0.5TON مكبس ضغط مكانيكي remove Rotary Tables remove


SKU

Rating

(No)

Price

Stock

Availability

Add to cart

Description

Descriptions This grinder has special equipment for regrinding rod big end composition surface. Features:

Diameter of the grinding wheel: 150mm
Dimension of revolution worktable: 120mm× 180mm (long× Wide)
Max moving of revolution worktable: 22mm

Descriptions Heavy-duty arbor press designed for garage and workshop. These arbor presses are small and hand-operated, typically used to perform small tasks, such as staking, riveting, installing, configuring, and removing bearings and other press fit work.

Descriptions This brand new Variable Speed Belt Grinder Machine is an ideal machine for stock removal, profiling, handles and finish work, satin or mirror finish. It is all steel construction, and all steel frame is welded at all joints that make this sander very solid and precise belt control. Besides, it runs smoothly and the tracking is very stable so it will not make a lot of noise. The drive will convert 1 phase into 3 phases, allowing for greater control when doing detail work and reducing heat after blades are heat treated. This grinder has top-of-the-line idlers wheels,motor & drive.

Descriptions

The universal dividing heads models UDH80, UDH100, UDH125, and UDH160 respectively have the center height of 80mm, 100mm, 125mm, and 160mm and are the most important attachment for milling machines. With the help of the dividing head, the workpiece held between centers, or on a chuck can be rotated to any angle as desired and the periphery of a workpiece can be divided into any number of divisions equally. By means of all kinds of cutters, the dividing head can also help the milling machine to perform the milling operation for flute, spur gear, spiral gear, spiral flute, Archimedean cam, helical flute, etc.
The dividing head is equipped with a face plate and then can be mounted onto the spindle nose. The workpiece can be mounted on the face plate; thus the cutting can be carried out from all sides of the workpiece. UDH125 and UDH160 models dividing heads are designed with improved shafts for supporting heavy loads.
The universal dividing heads of models UDH100, UDH125, and UDH160 are in the same structures as the UDH80 model dividing heads, and the operation handle is located on the left.

Descriptions Made from premium nodular cast iron, which ensures durability The vertical and horizontal table is one of the main accessories of milling machine. It can be used for indexing drilling or milling, circumferential cutting, boring a hole, and spot facing on milling machine. When the table in vertical with tailstock working together, it can be used on complex work for circular indexing drilling and milling. Enjoys strong stability and wonderful performance.

Content

Model	Arbor Press 1TON
Automation Type	Manual
Working Height	300 mm
Capacity	1 Ton
Dimensions	24.5 x 11.5 x 30 cm
Model No	1 TON
Weight	13 Kilograms

Model	Belt Sander Machine Combo 3IN1 2"×82"Belt
Rubber Contact Wheel	Ph427 × 12"
Rotating Speed	0-2800r/min
Aluminum Flat Platen (Big Wheels)	2.5" × 2.5"
Motor	220V, 2 Hp/ 1.5KW
Variable Speed	1 Phase Into 3 Phase
Belt	2"×82"
Aluminum Contact Wheels	2.5" × 2"
Aluminum Tracking Wheel	4" × 2"
Aluminum Drive Wheel	4" × 2"
Toothed Rubber Tire	12'' / 300mm
Concare Wheel Diameter	1'' / 25mm Diameter And 1.6'' / 40mm Diameter

Model	UDH80	UDH100	UDH125	UDH160
Center height (Millimeter)	80	100	125	160
Morse taper of spindle (Morse)	3	3	4	4
Diameter of spindle (Millimeter)	36.541	41.275	53.975	53.975
Worm wheel transmit proportion	01:40	01:40	01:40	01:40
The angular of spindle rises and falls relative to horizontal	>95:5	>95:5	>95:5	>95:5
Position width (Millimeter)	14	14	18	18
Dividing accuration (Minute)	60	45	45	45
Gross weight (Kg)	40	80	132	140

Model	Arbor Press 0.5TON
Automation Type	Manual
Working Height	270 mm
Capacity	0.5 Ton
Dimensions	24.5 x 11 x 27 cm
Model No	0.5 TON
Weight	10 Kilograms

Model	HRW160	HRW200	HRW250	HRW320	HRW400	HRW500
Rotary table diameter (mm)	160	200	250	320	400	500
Numbers of holes of Rotary table (Worm gear reduction radio)	2	3	3	4	4	5
Position width (mm)	12	14	14	18	18	14
T-slot width (mm)	10	12	12	14	14	18
Worm wheel Transmission Proportion	1;90	1:90	1:90	1:90	1:90	1:120
Dividing accuracy	10''	10''	10"	10"	10"	10"
Net weight (Kg)	16.5	22.5	33.5	65	125	215
Goss weight (Kg)	21.5	31	44.5	76	150	238

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
