| Description | Features:

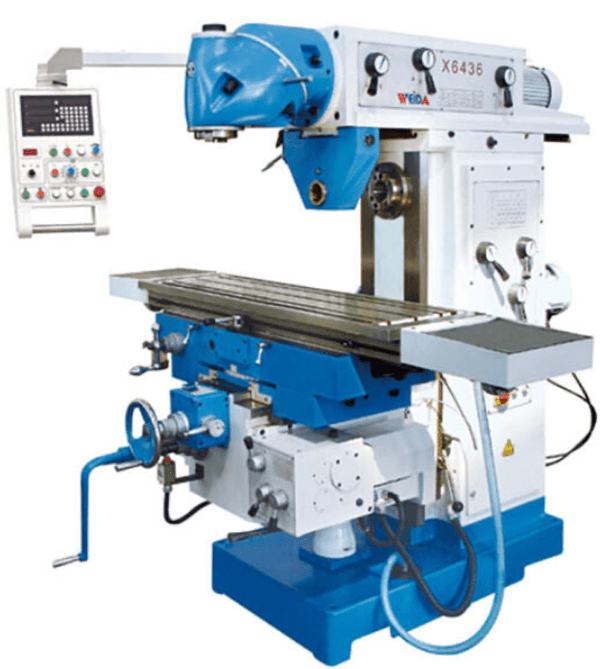

- This machine is with universal milling head, it can swivel 360 degrees.
- The table can swivel left and right side 35 degrees.
- The machine can automatically feed on three axes controlled through one gearbox.
- The ram is movable forward and backward.
- The table can be extended to 1600mm, and X travel is increased to 1300mm simultaneously.
- The machine is equipped with an operation panel which is convenient for the operator.
| Description
TAB-ECP25 eccentric press is a suitable open type of crank press featuring a left and right open type machine body (i.e., a C-shaped machine body). Its steel plate welded body has a high shock-absorbing performance. Its novel overall design gives the machine an elegant appearance. Its throat has a certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake, and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading, and operation are convenient. The punch press is widely used because it provides good conditions for mechanization and automation. And as the main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching, and forming. | Descriptions
Used for thin metal plate rolling
Features:
1. The roller adopts high strength and high life solid bearing roller with long time and small deformation.
2. The driving gear adopts forging high carbon steel, high hardness, and strong wear-resisting property.
3. The whole machine adopts integral steel plate welding, thick and beautiful, and the stability is good.
4. Simple operation, a single person can work independently | Description
Hydraulic round bending machine with hydraulic motor
both Vertical and horizontal bending
Features:
- Horizontal and vertical operation
- With the standard foot pedal
- Special cast frame+
- Shafts are hardened with special steel material
- Rollers are special steel material hardened and grounded
- Gears Milled with full material
- HRBM40HV with hydraulic control
| Description
TAB-ECP10 eccentric press is a suitable open type of crank press featuring a left and right open type machine body (i.e., a C-shaped machine body). Its steel plate welded body has a high shock-absorbing performance. Its novel overall design gives the machine an elegant appearance. Its throat has a certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake, and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading, and operation are convenient. The punch press is widely used because it provides good conditions for mechanization and automation. And as the main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching, and forming. | Description
TAB-ECP16 eccentric press is a suitable open type of crank press featuring a left and right open type machine body (i.e., a C-shaped machine body). Its steel plate welded body has a high shock-absorbing performance. Its novel overall design gives the machine an elegant appearance. Its throat has a certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake, and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading, and operation are convenient. The punch press is widely used because it provides good conditions for mechanization and automation. And as the main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching, and forming. |
| Content |
| Model |
Unit |
SPUM6436 |
| Table size |
mm |
1650x360 |
| T slot |
no |
5 |
| T Slot Size ( Width ) |
mm |
14 |
| Centre distance |
mm |
95 |
| Max. load of Table |
kg |
400 |
| swivel of table |
degree |
±45º |
| machining range |
| X axis table Longitudinal travel(manual/auto) |
mm |
1300 |
| Y axis table Cross travel (manual/auto) |
mm |
290/280 |
| Z axis table Vertical travel(manual/auto) |
mm |
390 |
| MAIN SPINDLE |
| Spindle taper |
|
ISO50 |
| Spindle speed /step -- Vertical |
rpm |
58-1800/12 |
| Spindle speed /step --Horizontal |
rpm |
38-1310/12 |
| Swivel angle of swivel head |
degree |
360º |
| Vertical spindle nose to table surface |
mm |
|
| Horizontal spindle axis to table surface |
mm |
0-390 |
| Horizontal spindle axis to arm bottom |
mm |
175 |
| Arm travel |
mm |
500 |
| FEEDS |
| X /Y Longitudinal/cross feed |
mm / min |
22-420(X), 22-393(Y) |
| Z Vertical feeding rate |
mm/min |
10-168(Z) |
| X/Y Longitudinal/cross rapid speed |
mm / min |
1290(X),1205(Y) |
| Z Rapid Traverse vertical |
mm/min |
513(Z) |
| POWER |
| Main motor |
kw |
4 |
| (X/Y/Z) feed motor |
kw |
1.1KW |
| Coolant motor |
kw |
90W |
| Other |
| Overall dimension |
cm |
198x202x190 |
| N/W,G/W |
kg |
2600/2800 |
|
| Model |
Unit |
TAB-ECP25 |
| Nominal Pressure |
kn |
250 |
| Travel of slip block |
mm |
70 |
| Frequency of travel |
Frequency/minute |
40 |
| Enclosed height |
mm |
70 |
| Maximum adjustment of enclosed height |
mm |
60 |
| Distance from center of slip block to press body |
mm |
180 |
| Size of shank holes diameter |
mm |
40 |
| Bolster Surface |
Front to Rear |
mm |
520 |
| Left to Right |
mm |
330 |
| Size of shank holes depth |
mm |
60 |
| Distance between Uprights |
mm |
160 |
| Thickness of plate of workbench |
mm |
170 |
| Motor Power |
kw |
2.2 |
| Overall Dimension |
F.B. |
mm |
910 |
| L.R. |
mm |
700 |
| Height |
mm |
1800 |
|
| Manual Metal Sheet Rolling Machine1.50mm×1300mm |
| Model |
Max thickness of Plate(mm) |
Max width of Plate(mm) |
Dia.of upper roller(mm) |
Dia.of side roller(mm) |
Weight (kg) |
Overall Dimension (mm) |
| 1.50×1300 |
1.5 |
1300 |
72 |
80 |
225 |
1800×550×1170 |
|
| Model |
HRBM40HV |
| Motor power |
1.5 kW |
| Leading roller speed |
9.3 r/min |
| Roller shaft diameter |
40 mm |
| Dimensions machine |
1340×930×1850 mm |
| Net weight |
490 kg |
|
| Model |
Unit |
TAB-ECP10 |
| Nominal Pressure |
kn |
100 |
| Slide Stroke |
mm |
50 |
| Strokes per Minute |
Spm |
120 |
| Max.Die Height |
mm |
150 |
| Die Height Adjustment |
mm |
30 |
| Throat Depth |
mm |
125 |
| Bolster Surface |
Front to Rear |
mm |
220 |
| Left to Right |
mm |
340 |
| Blanking hole |
mm |
90 |
| Distance between Uprights |
mm |
125 |
| Thickness of Bolster |
mm |
50 |
| Inclinable Angle |
degree |
30 |
| Motor Power |
kw |
1.5 |
| Overall Dimension |
F.B. |
mm |
610 |
| L.R. |
mm |
550 |
| Height |
mm |
1400 |
|
| Model |
Unit |
TAB-ECP16 |
| Nominal Pressure |
kn |
160 |
| Strokes per Minute |
Spm |
110 |
| Max.Die Height |
mm |
190 |
| Die Height Adjustment |
mm |
40 |
| Throat Depth |
mm |
160 |
| Bolster Surface |
Front to Rear |
mm |
280 |
| Left to Right |
mm |
450 |
| Blanking hole |
mm |
100 |
| Distance between Uprights |
mm |
160 |
| Thickness of Bolster |
mm |
60 |
| Inclinable Angle |
degree |
40 |
| Motor Power |
kw |
1.5 |
| Overall Dimension |
F.B. |
mm |
800 |
| L.R. |
mm |
670 |
| Height |
mm |
1700 |
|
